Skylight House

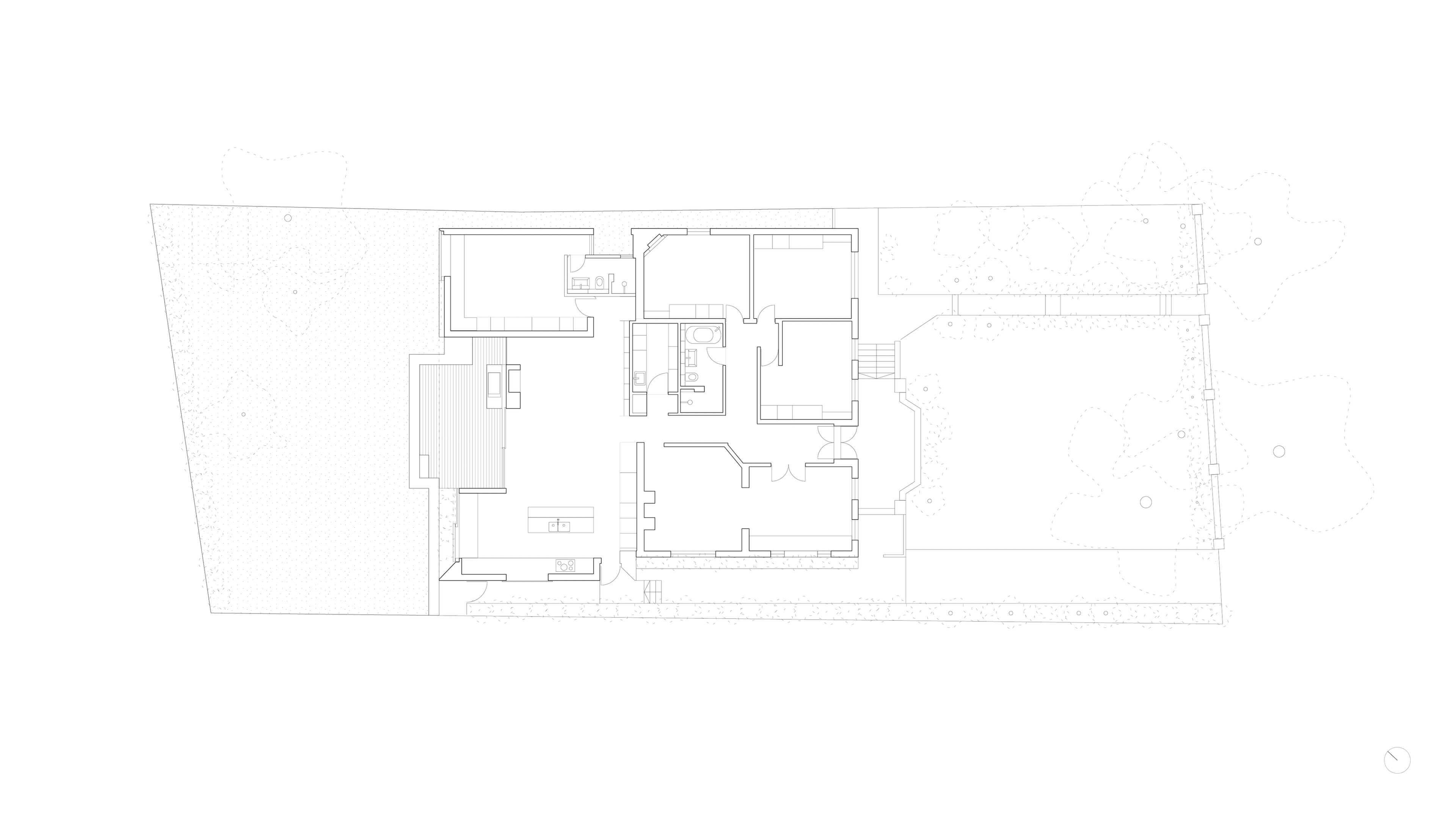

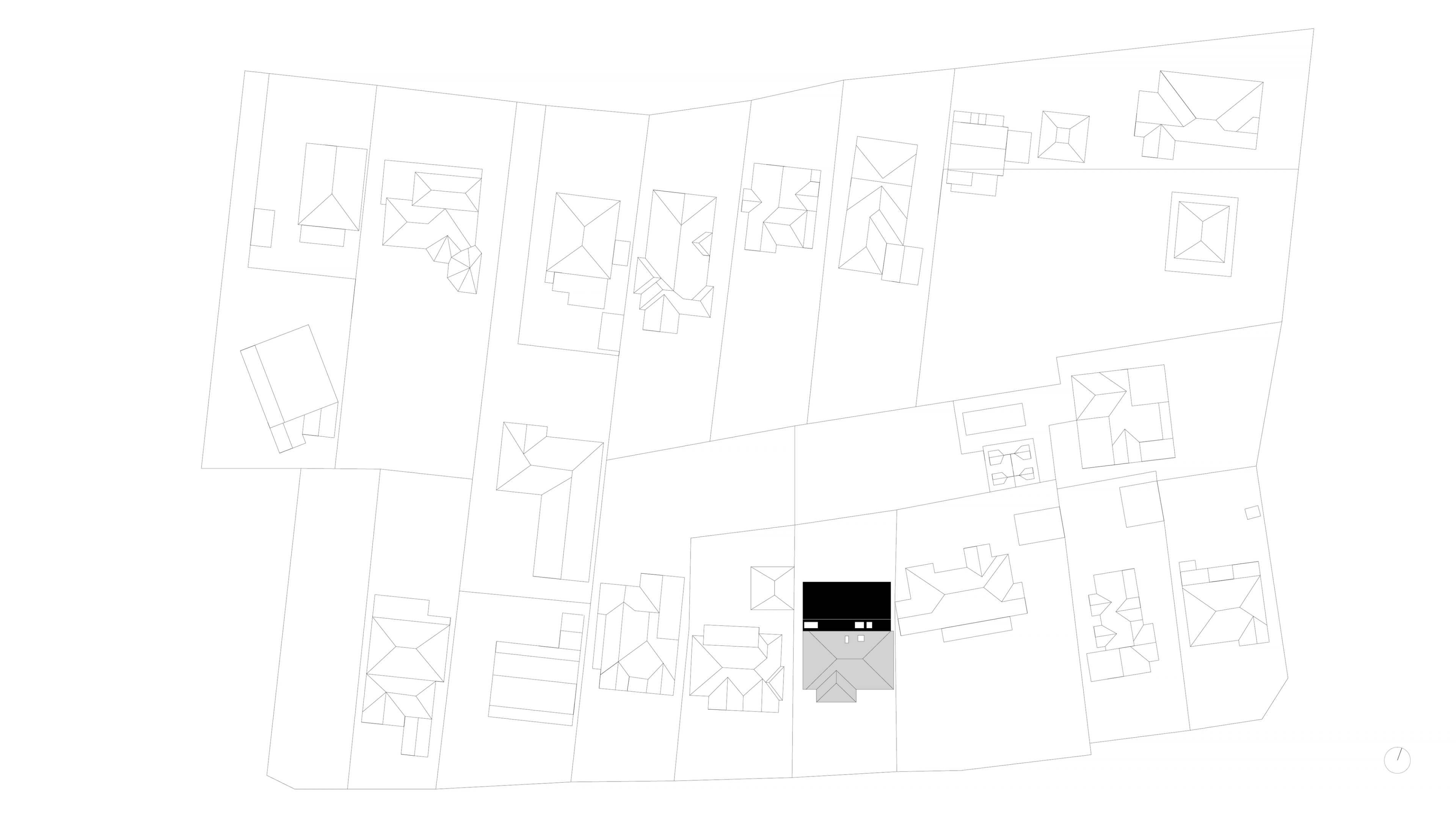

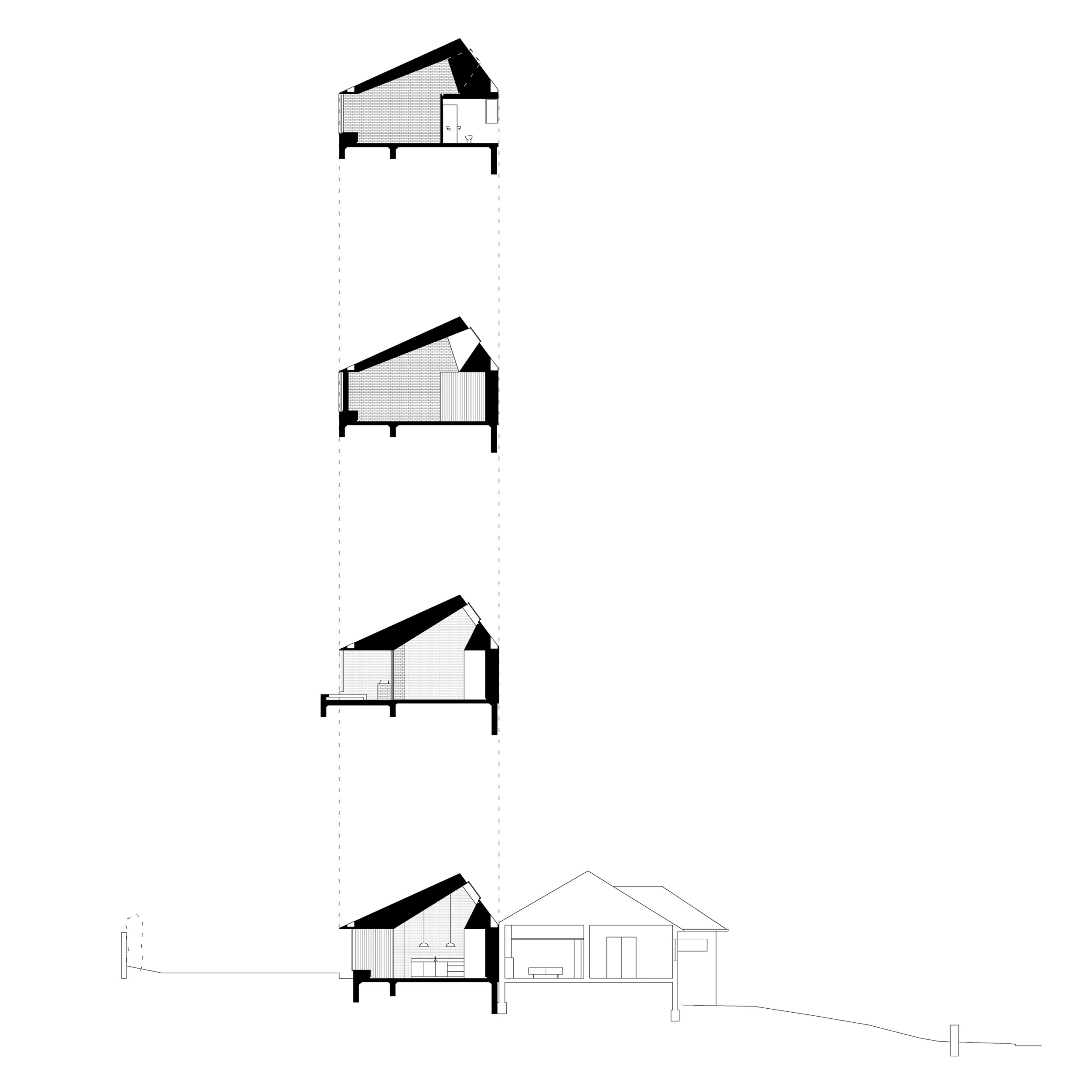

Located in a predominately Federation and California Bungalow neighbourhood on the north shore, our brief for this residential alterations and additions project was to rework a badly planned existing dwelling, and previous alterations project, to create a functional house for a family of 6 with improved natural light and greater connection to the garden. After initially exploring a two level option at the client’s request, we encouraged a compact single level proposal with improved planning and a spacious cross section as the best solution within the project’s tight budgetary constraints.

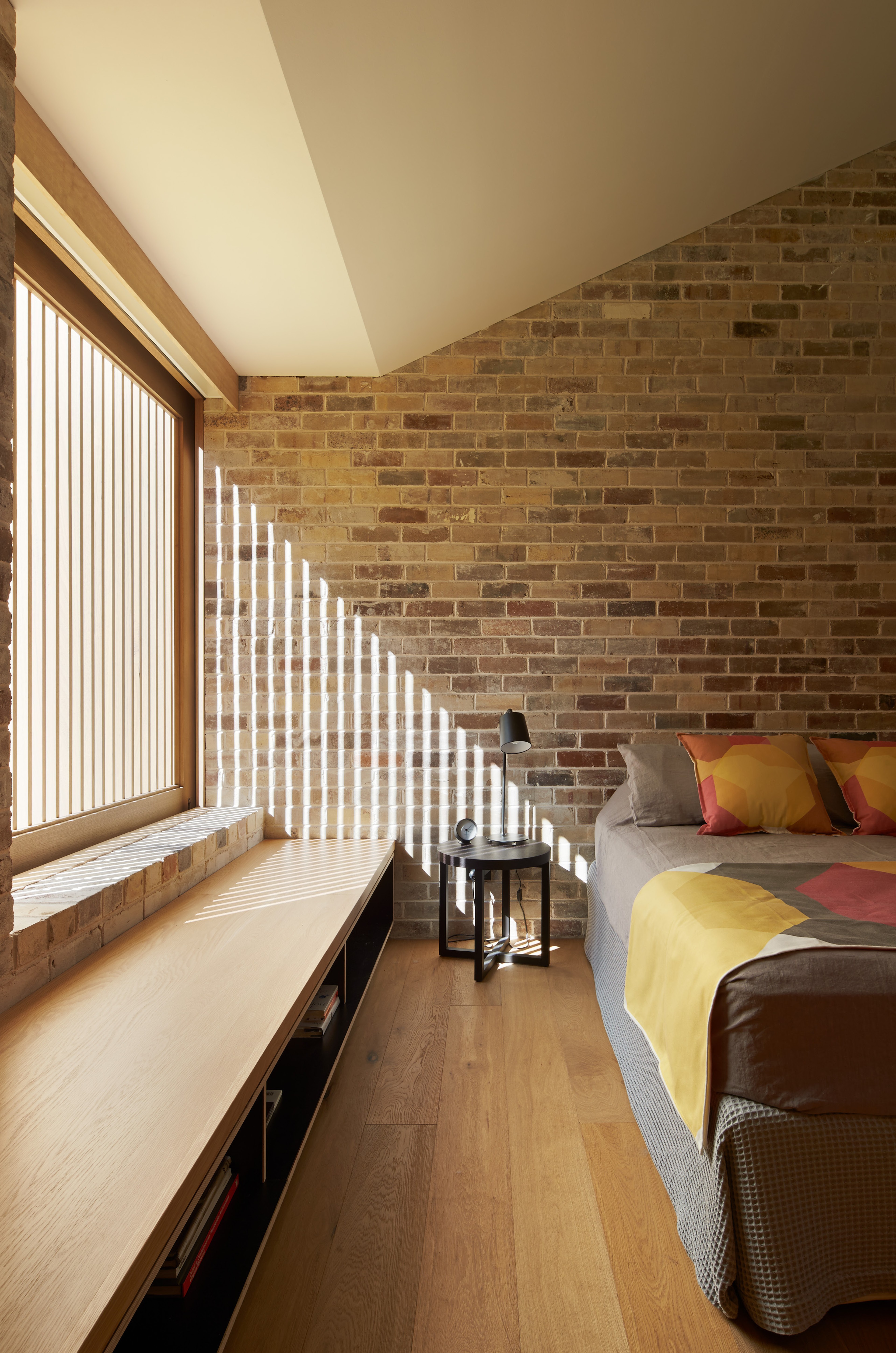

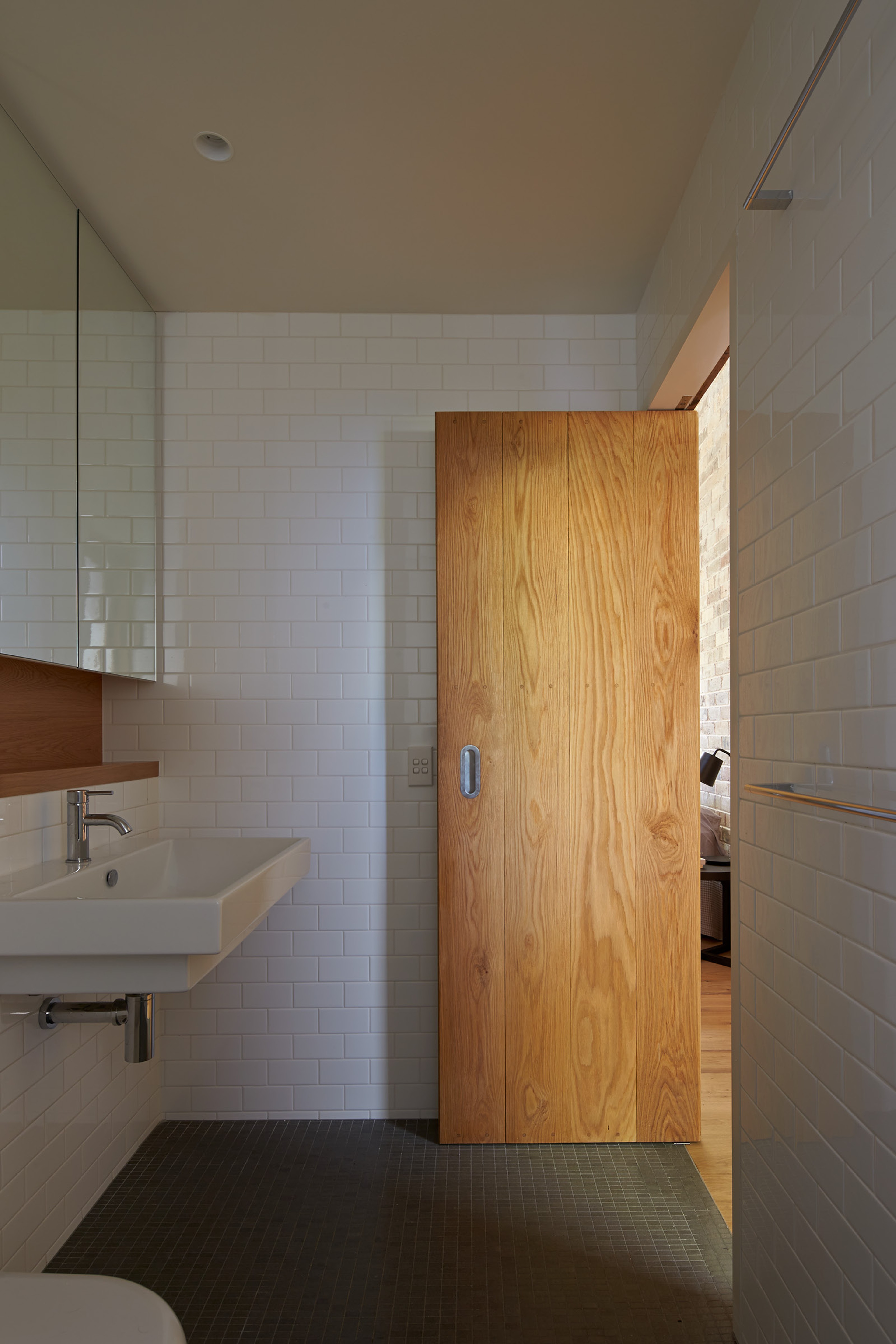

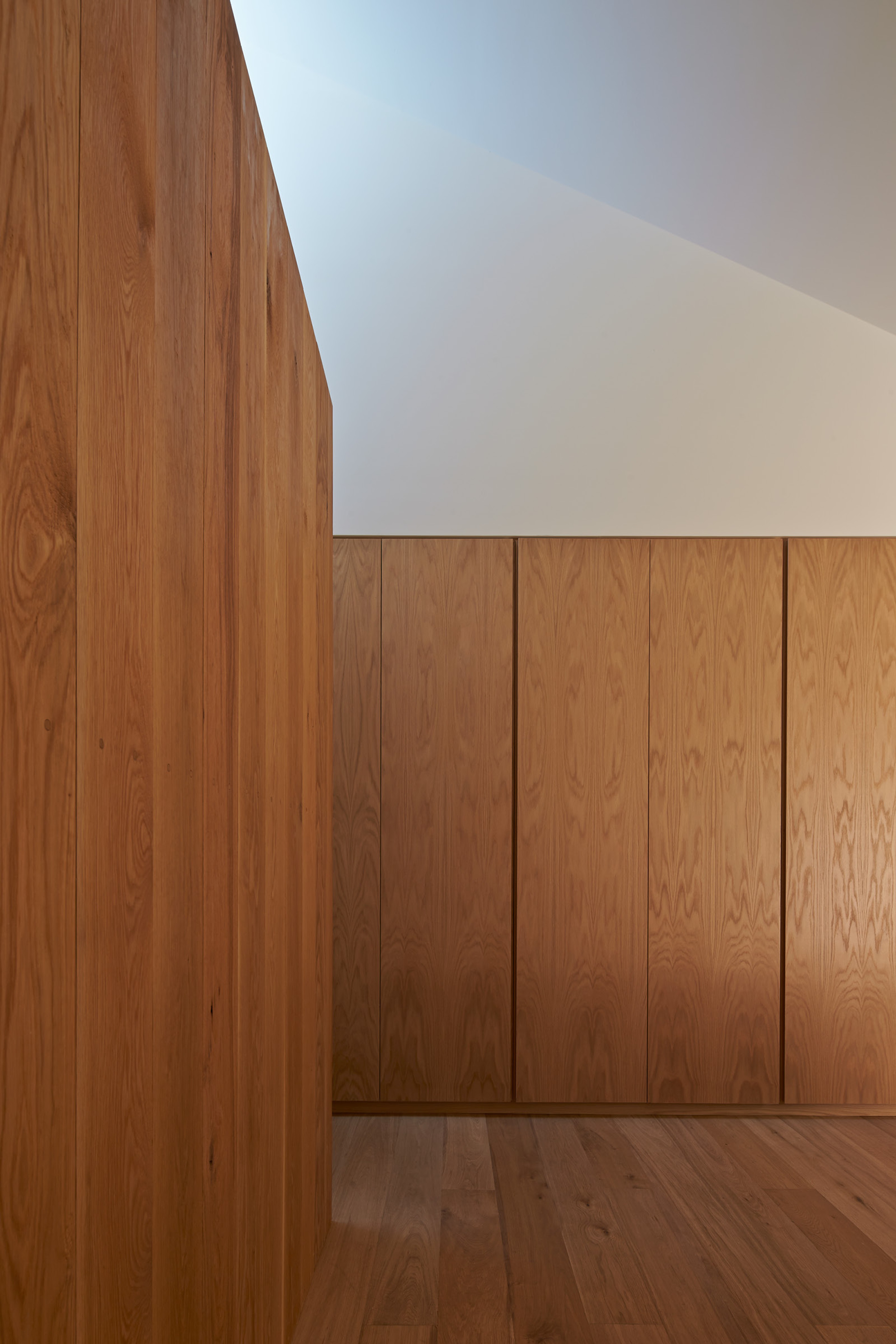

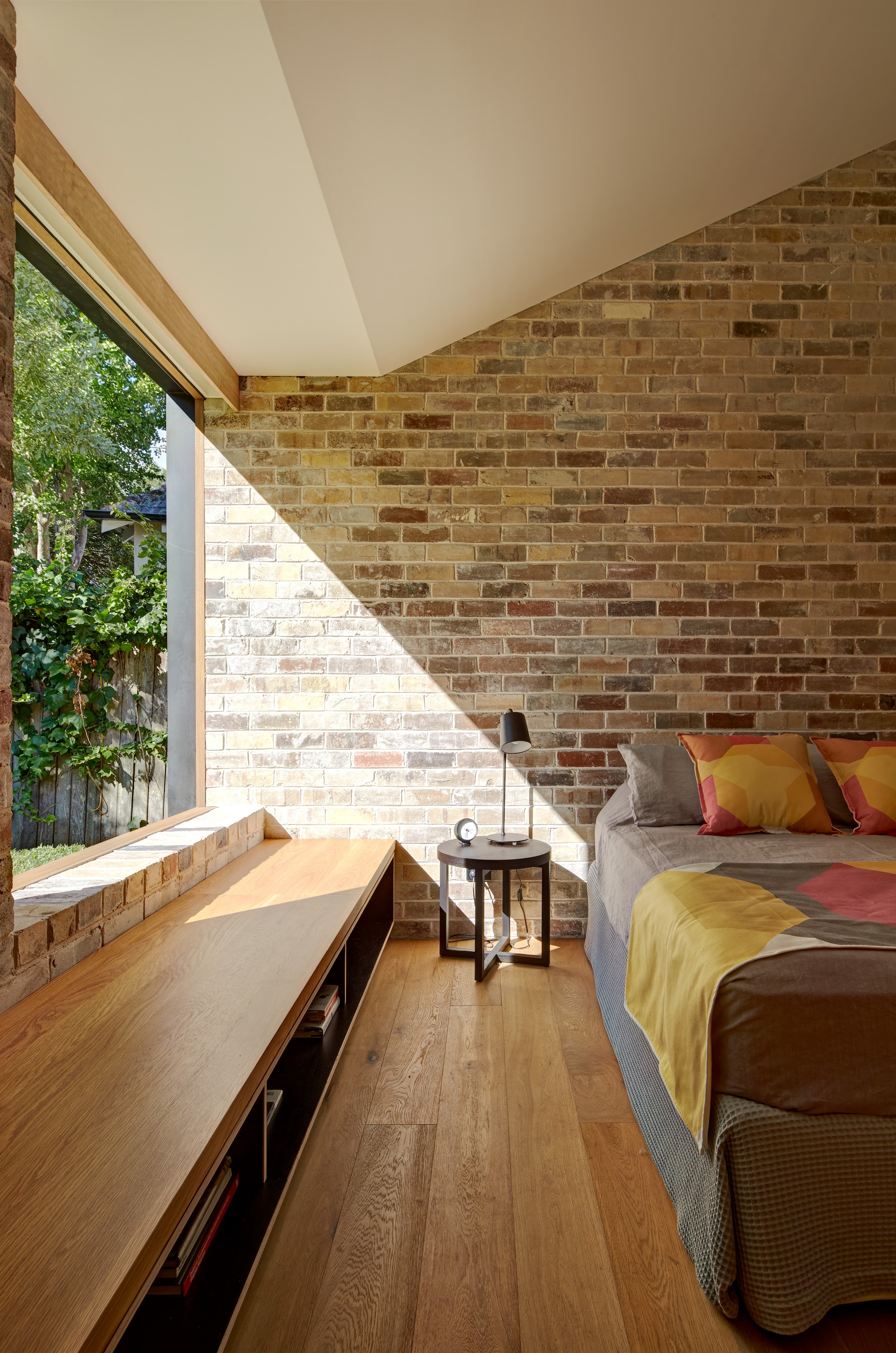

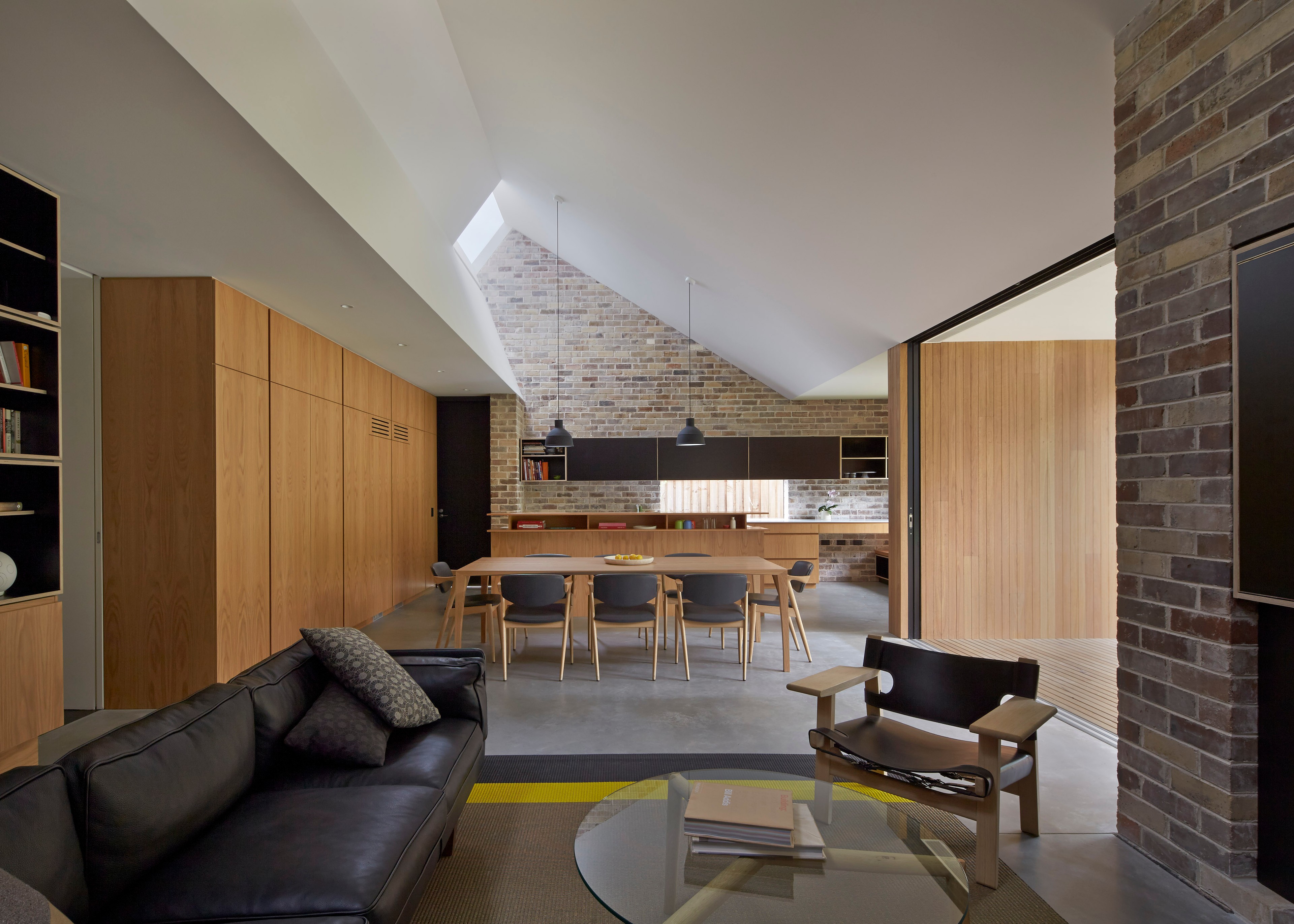

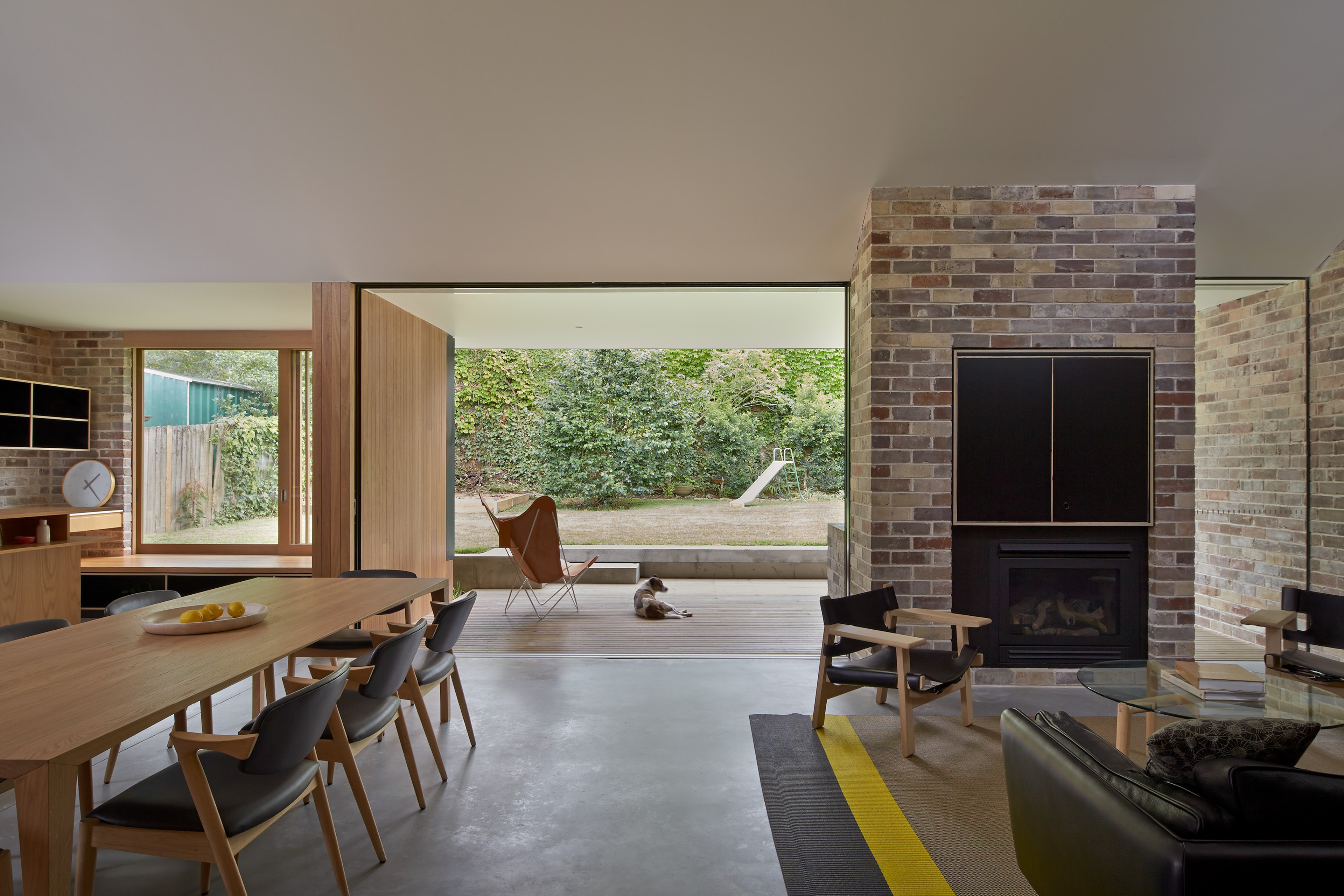

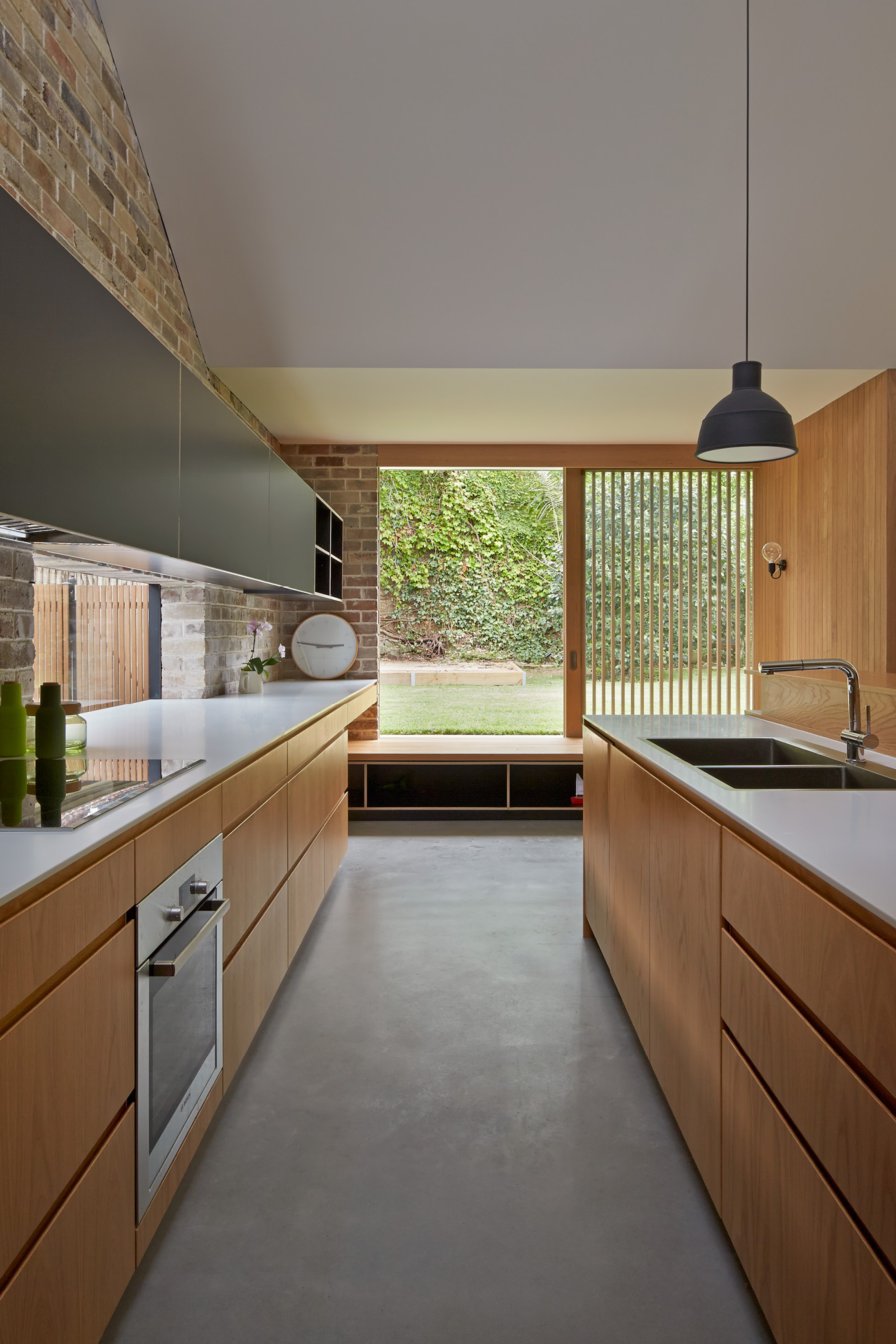

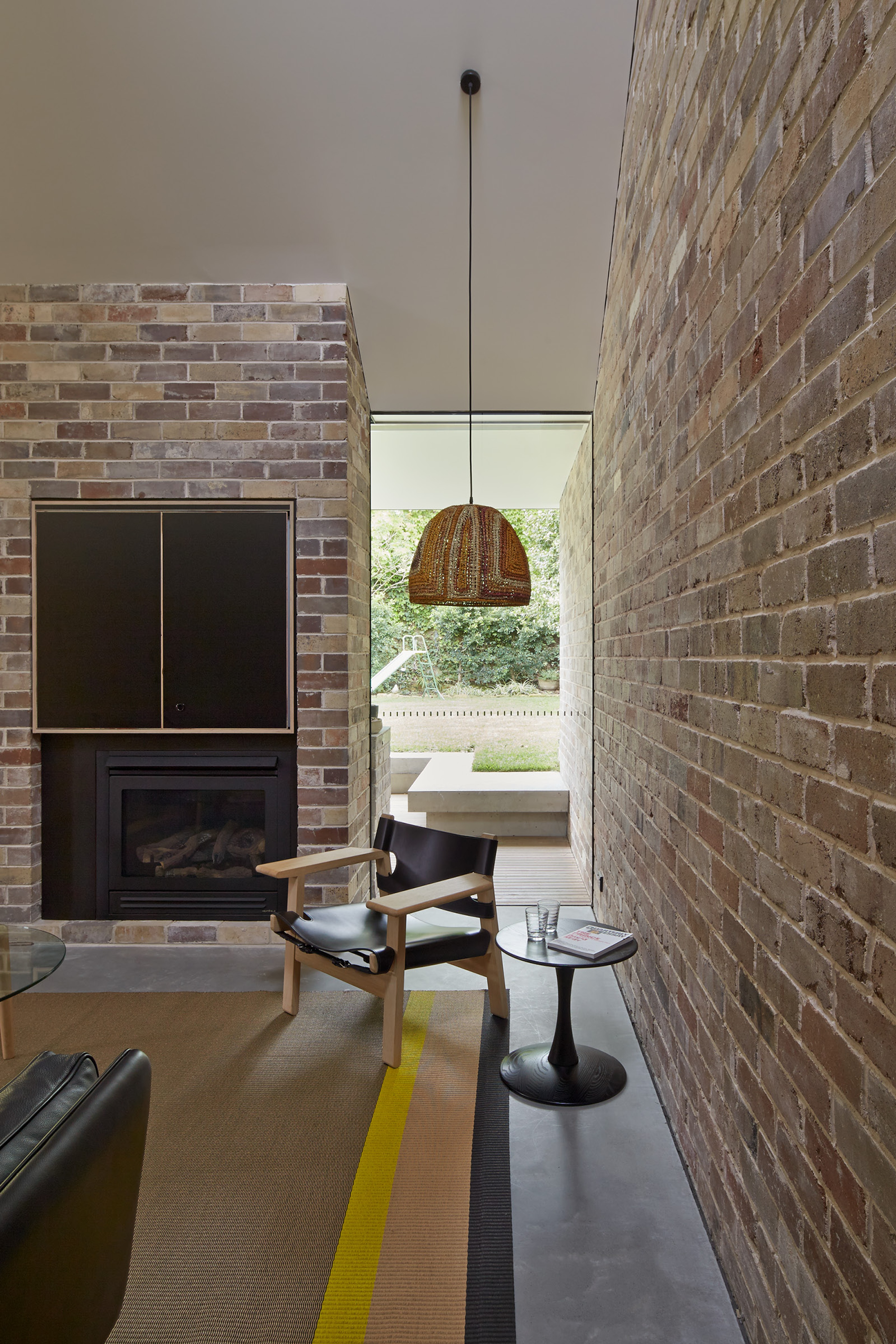

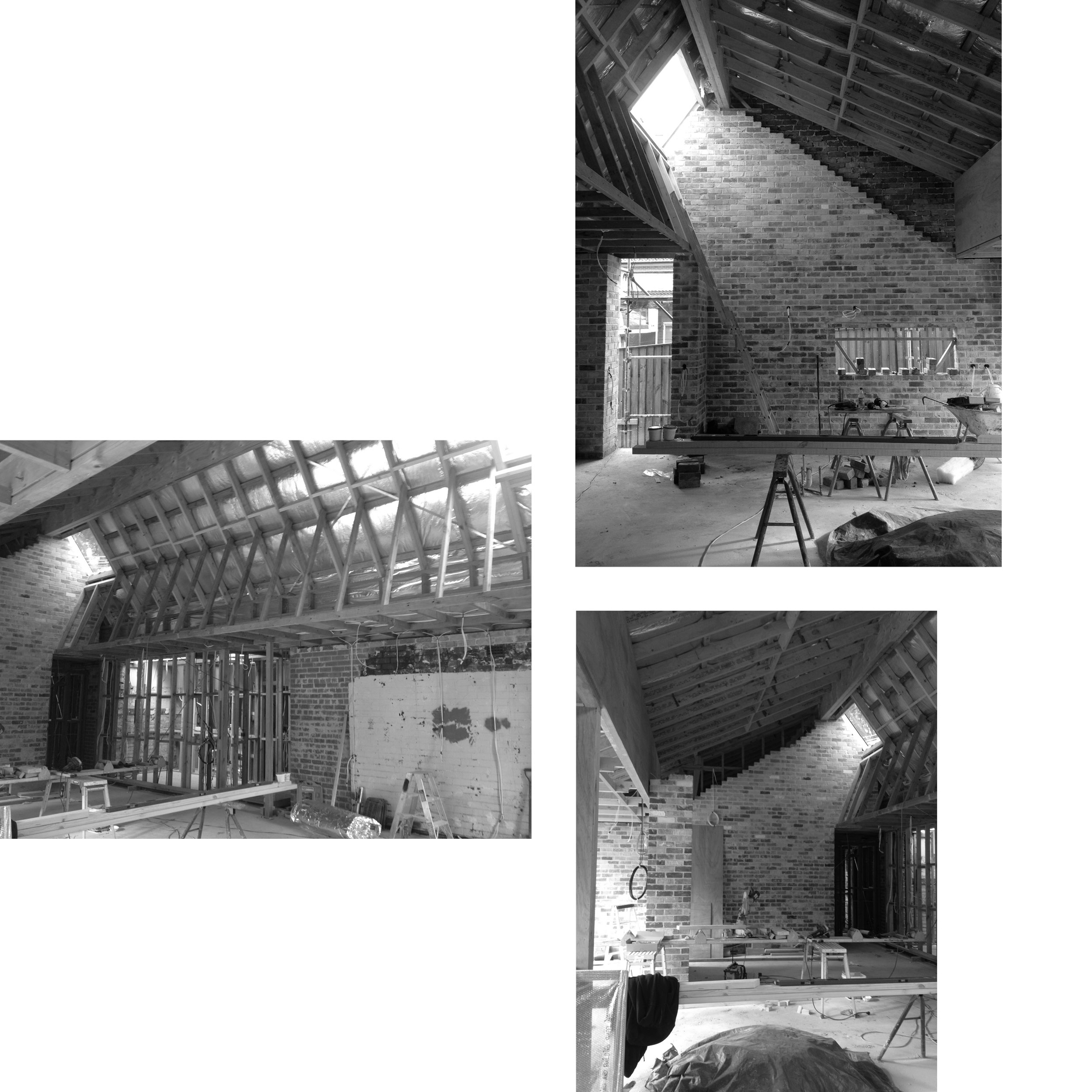

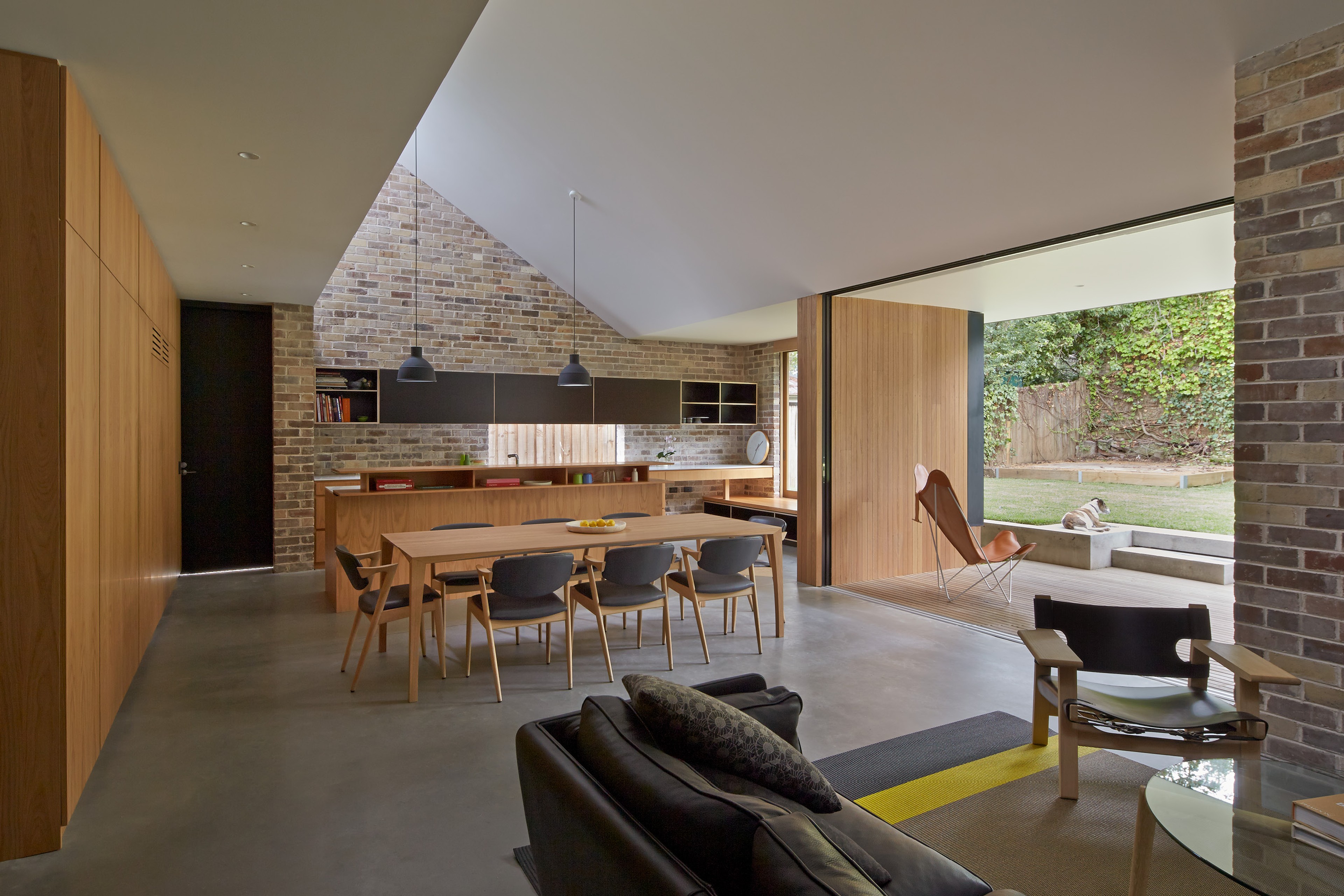

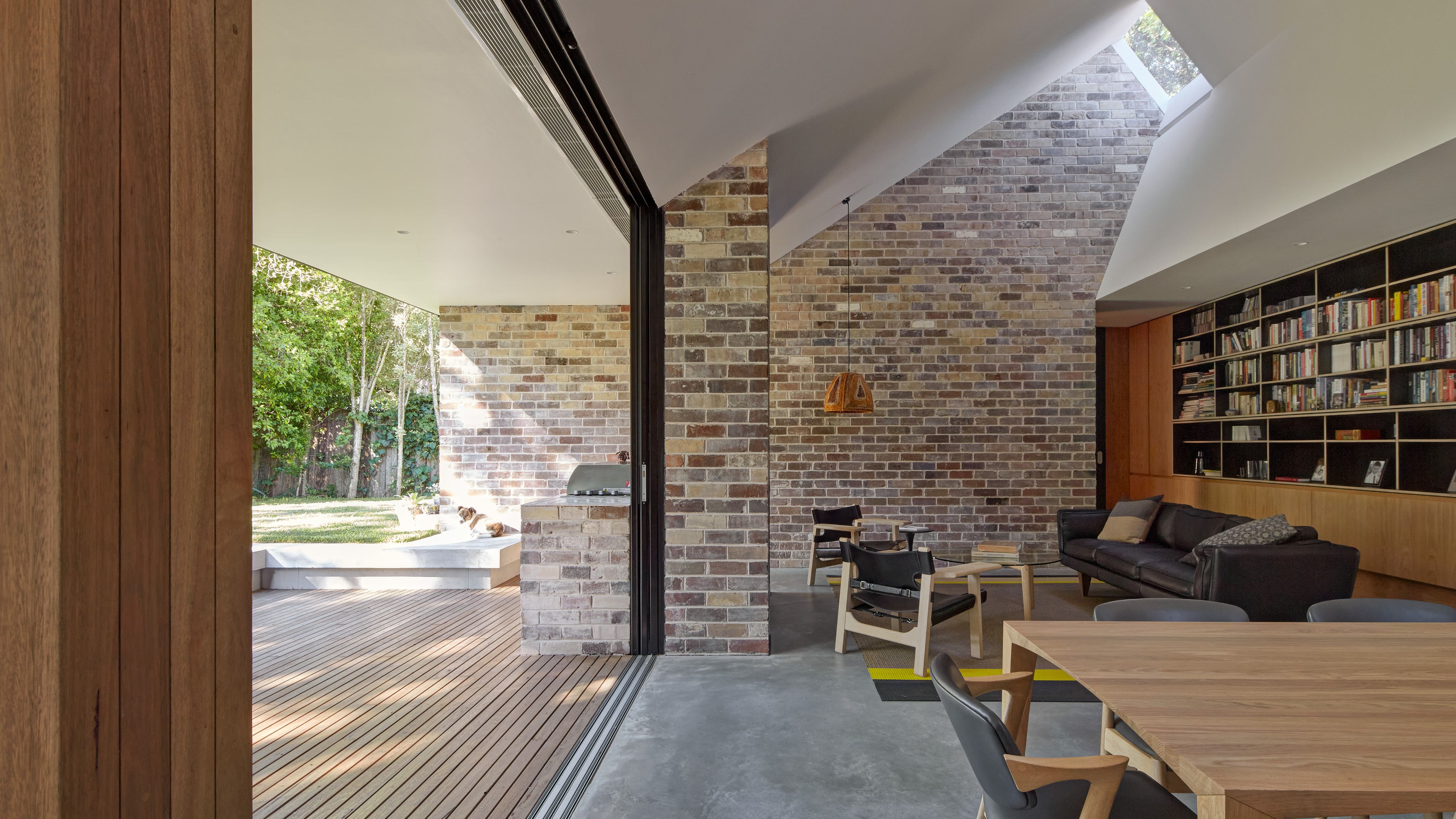

The major structural walls are recycled face brick re-used from the existing house’s demolished rear walls and external laundry and bathroom. All joinery below the ceiling line datum is American oak, while the floor is concrete with underfloor heating. Internally this creates a clear palette of abstract lightness above, while all materials within touching distance of the occupants are robust, easily maintained natural materials.

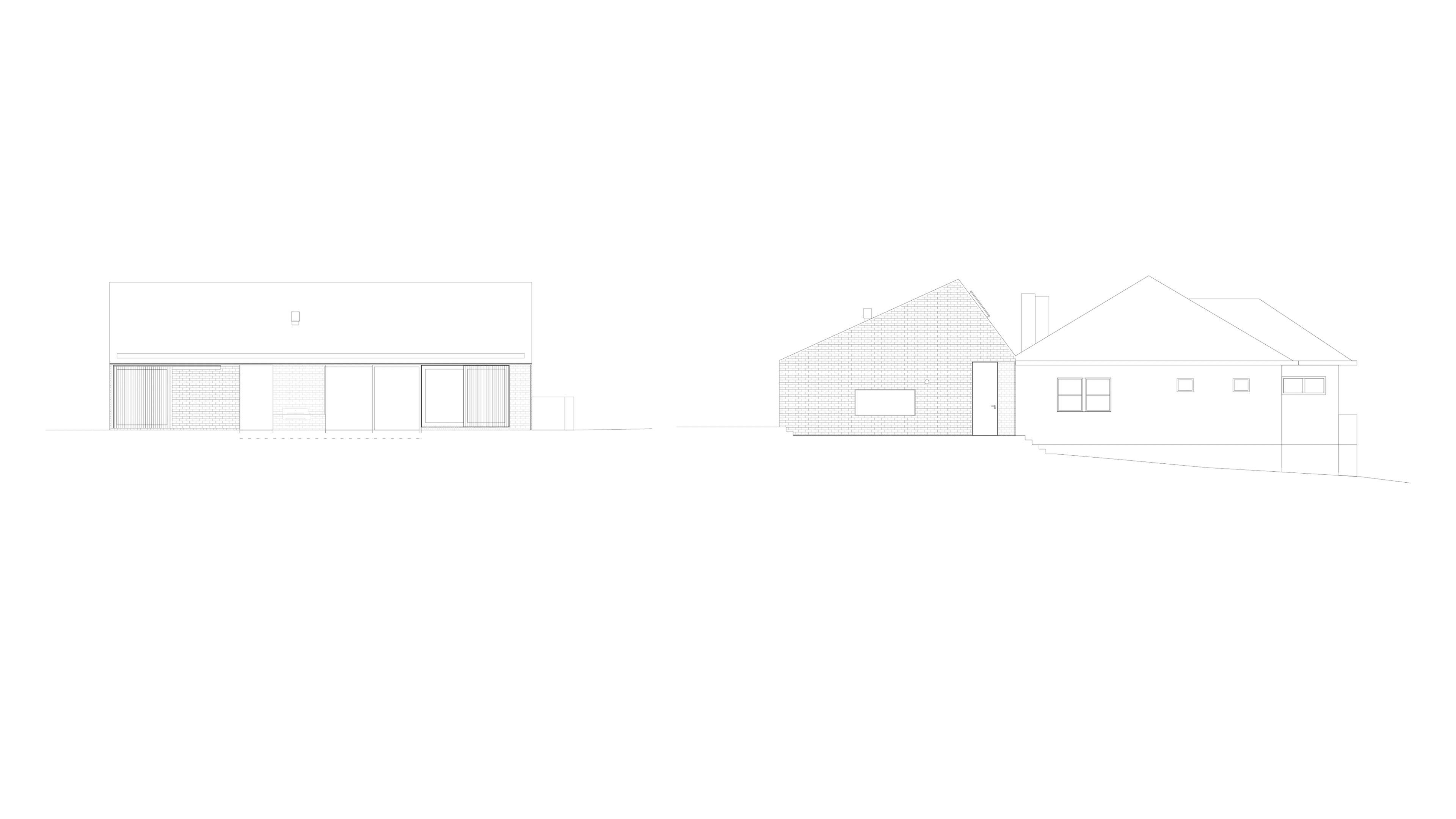

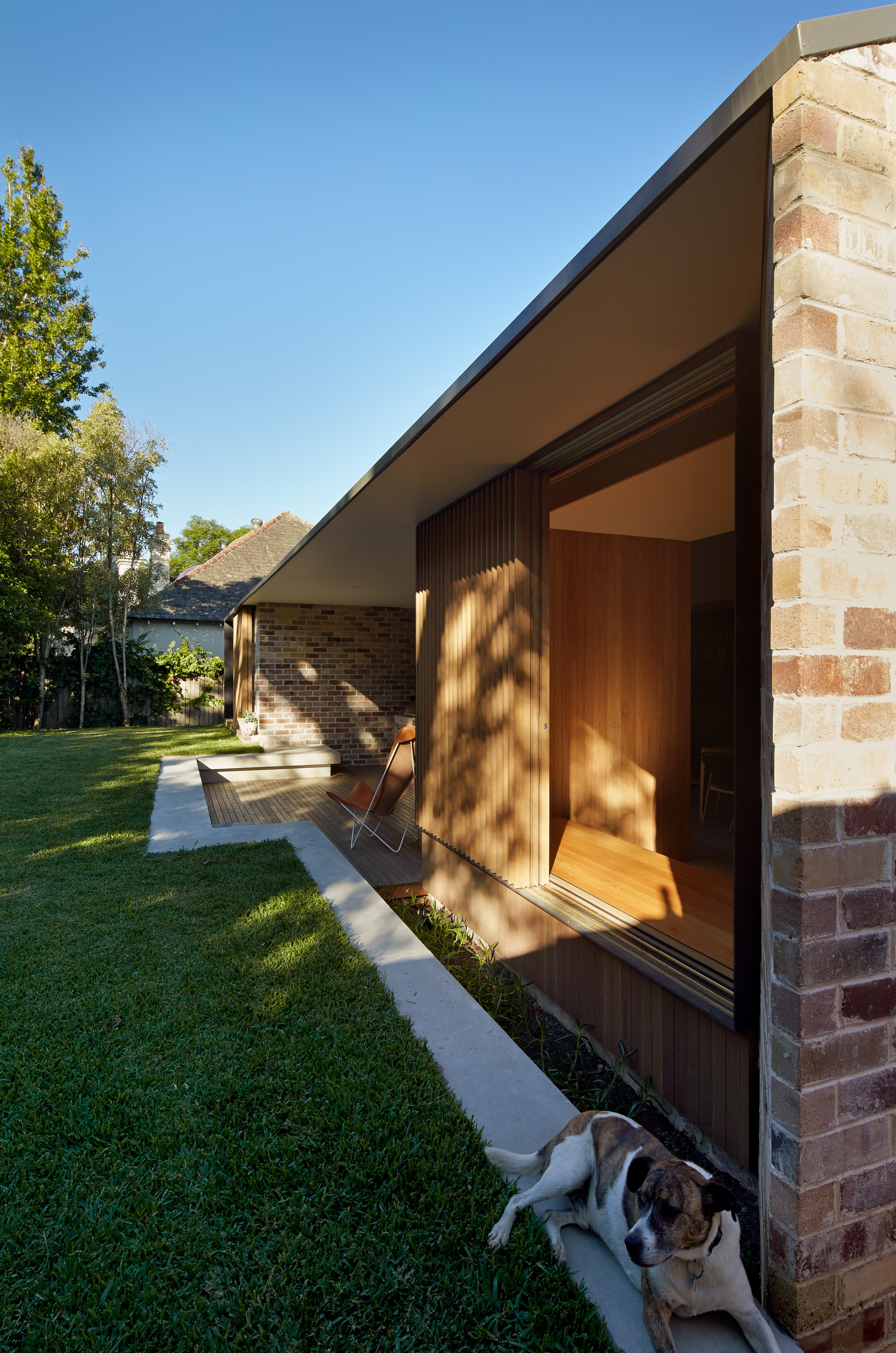

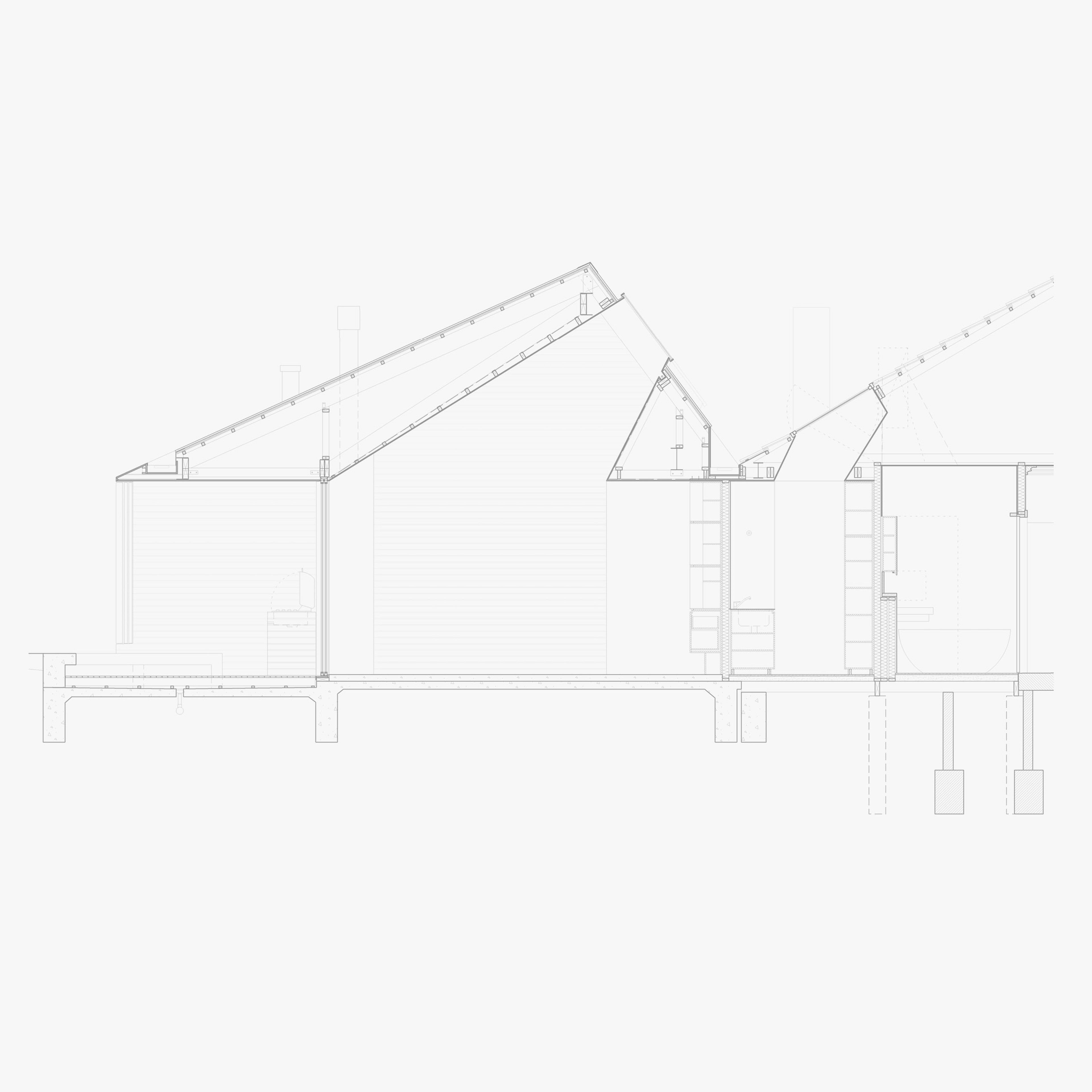

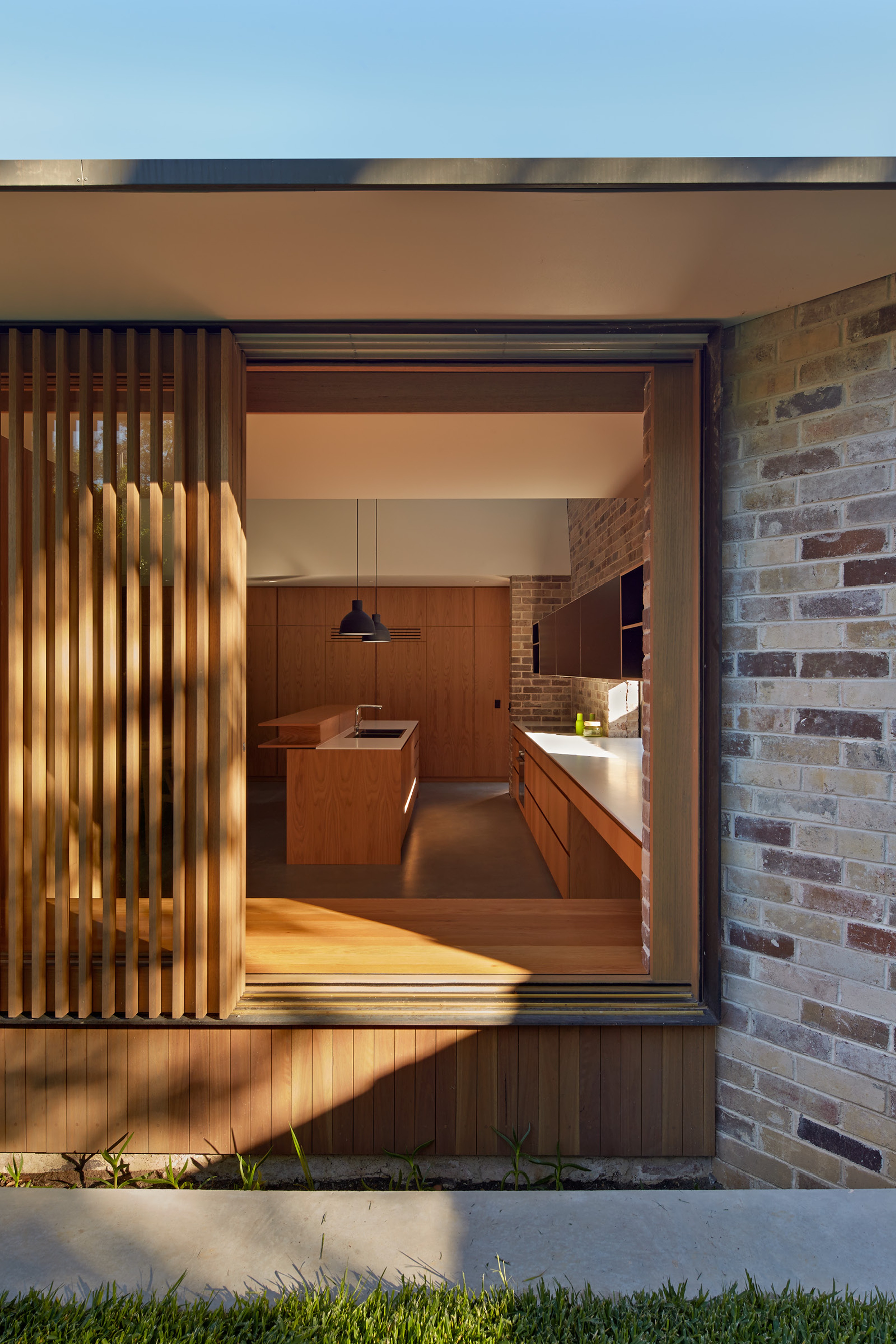

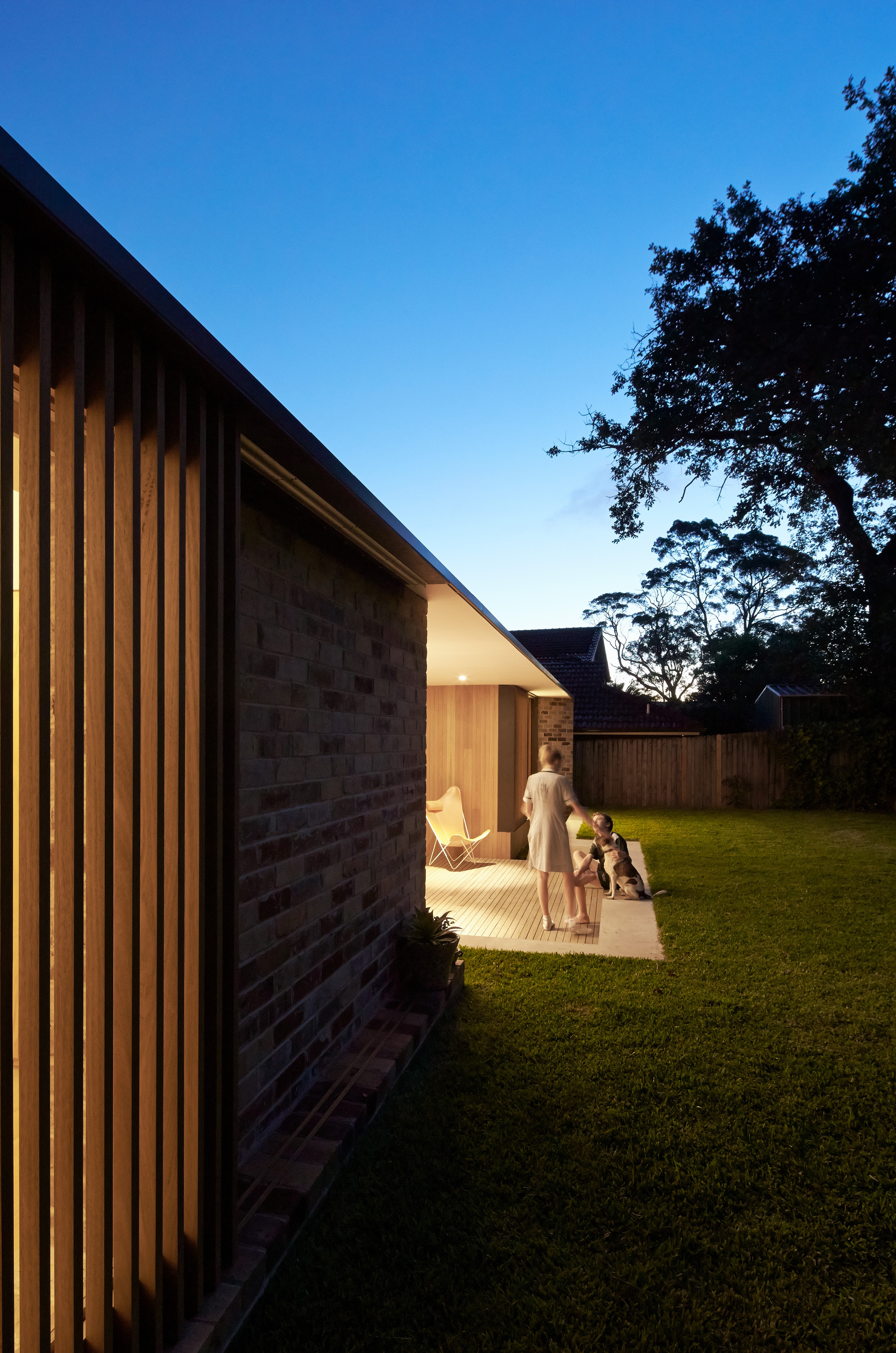

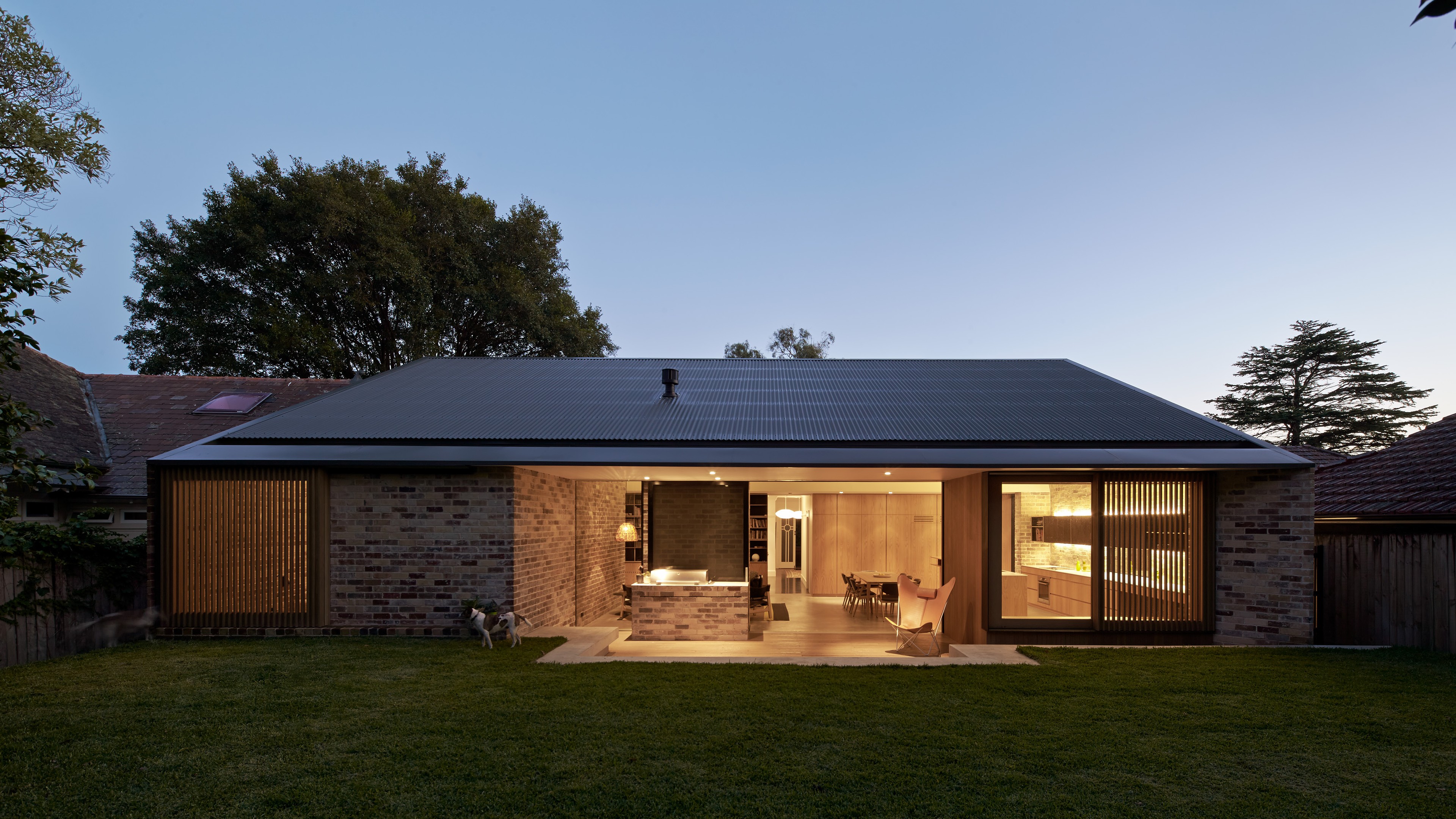

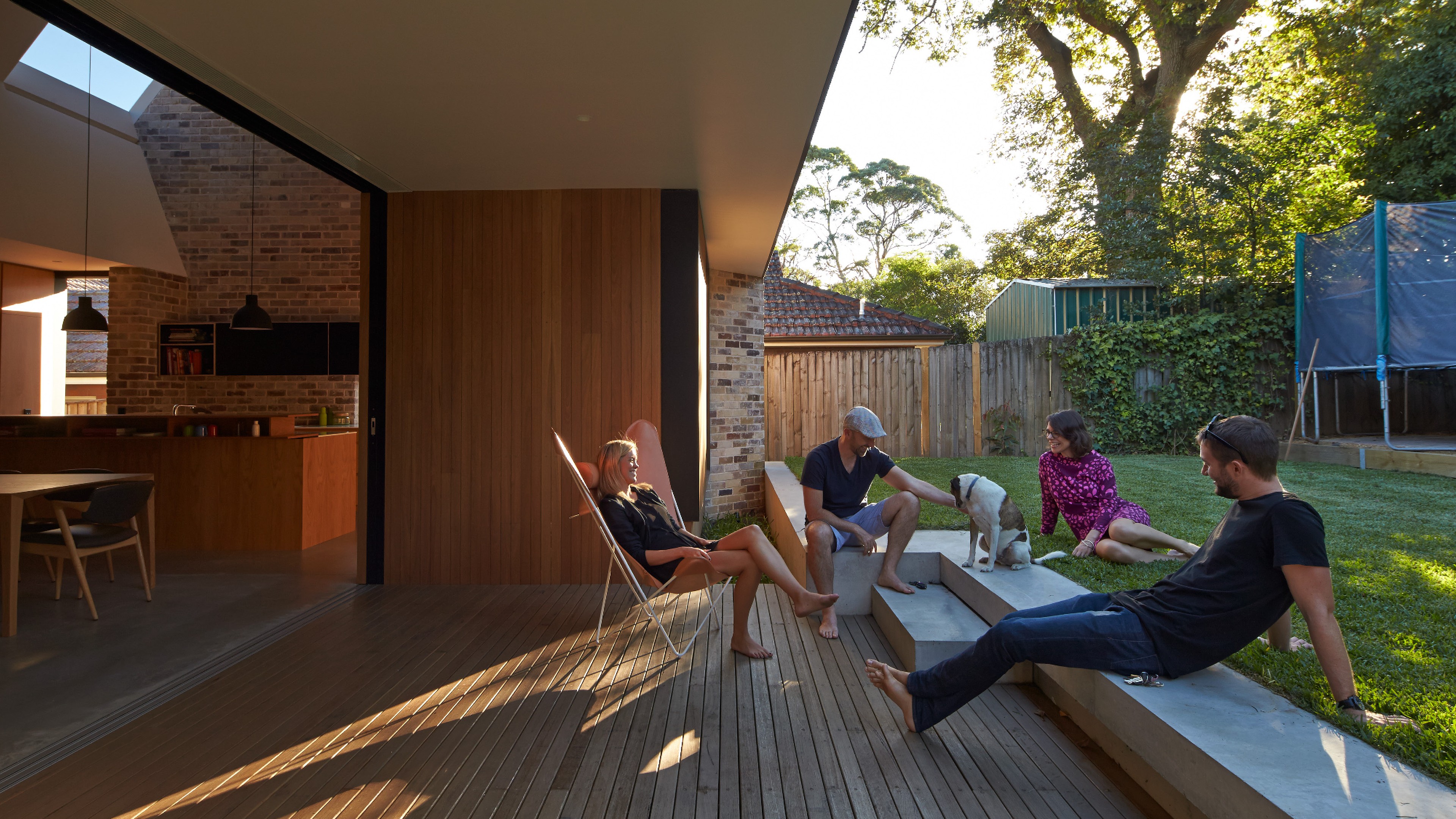

Externally, the roof edge and brick edge of the side walls defining the key vertical and horizontal rear lines of the façade are cut to a common dimension of 50mm, giving a lightness to the bounding frame of the rear façade. Within this outline, timber walls and windows are integrated to be a common material finish that creates the perception of a separate building element within this long rear façade. Sliding screens allowing variability to the façade according to sun control and privacy needs. The roof form, while housing a complex interior section, creates a simple and modest outline for the rear addition that sits comfortably with the federation and California Bungalow neighbouring dwellings.
